Pvdf Membrane

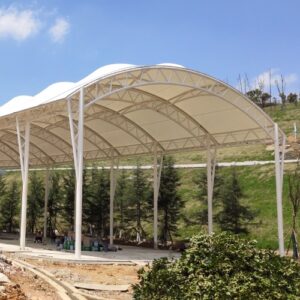

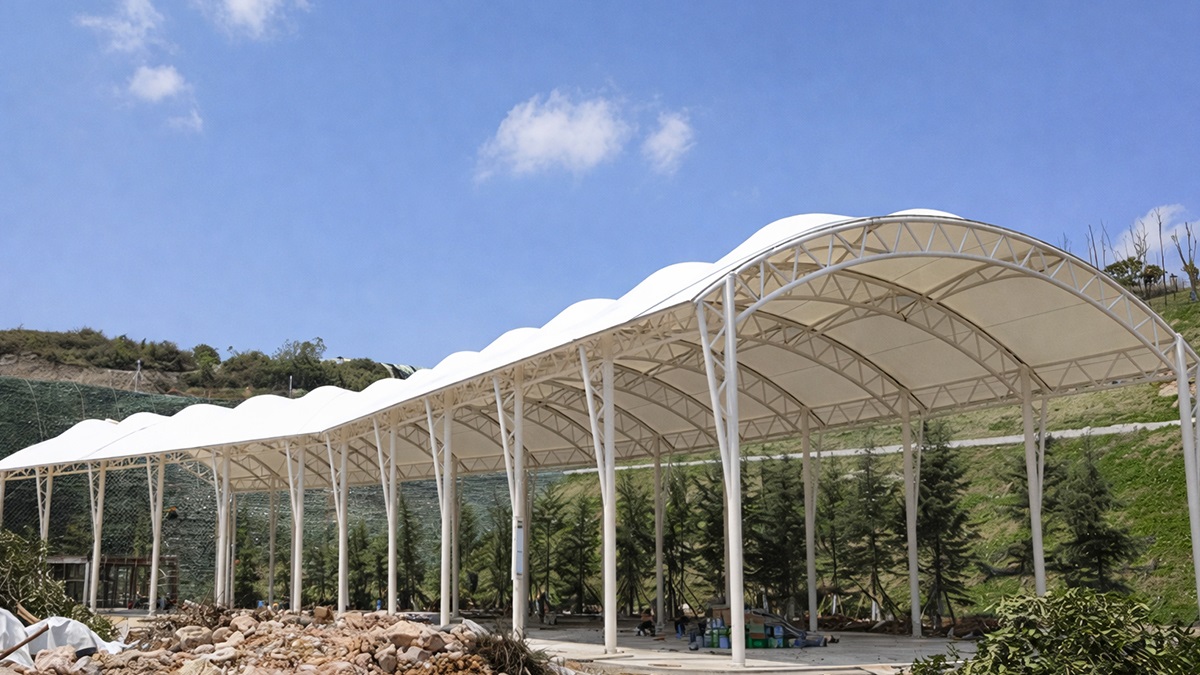

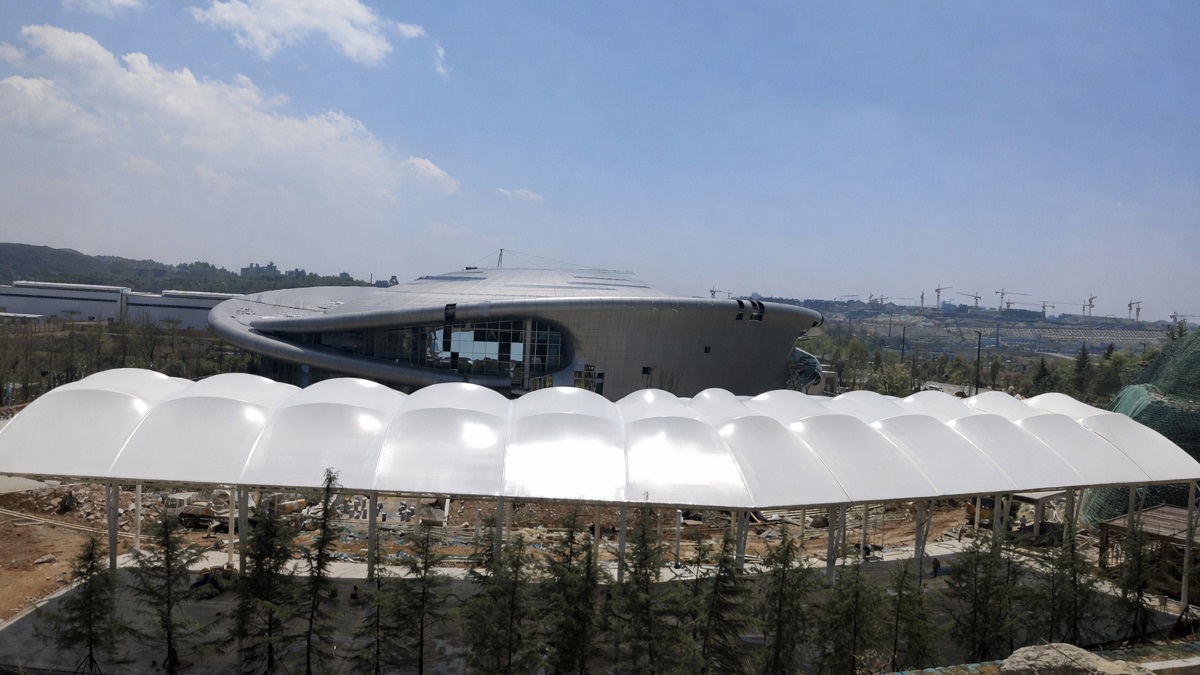

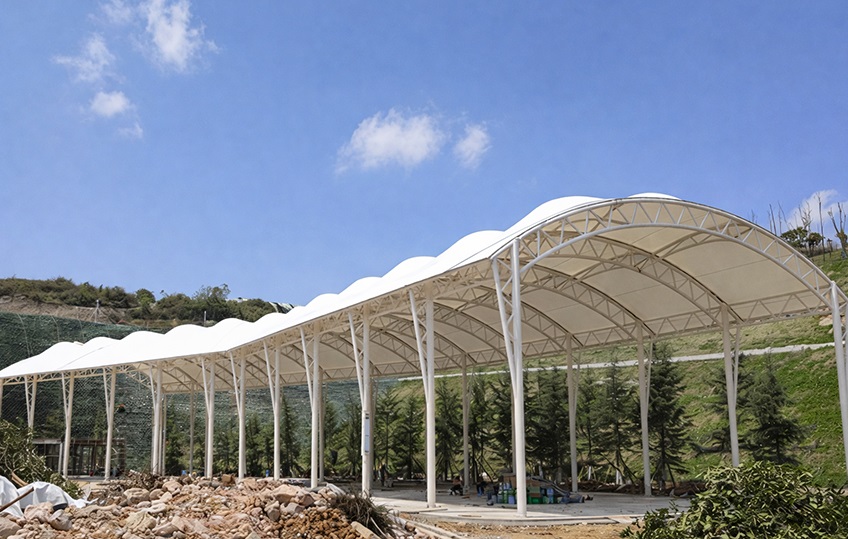

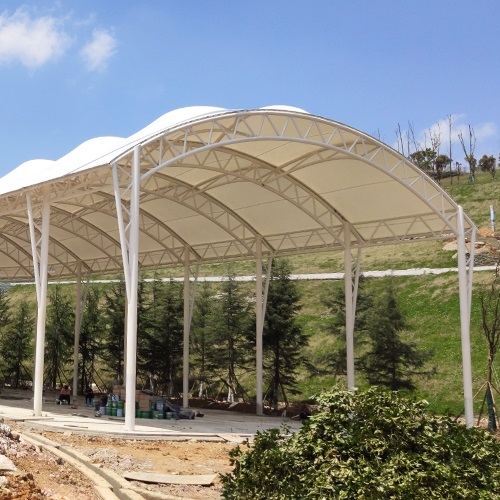

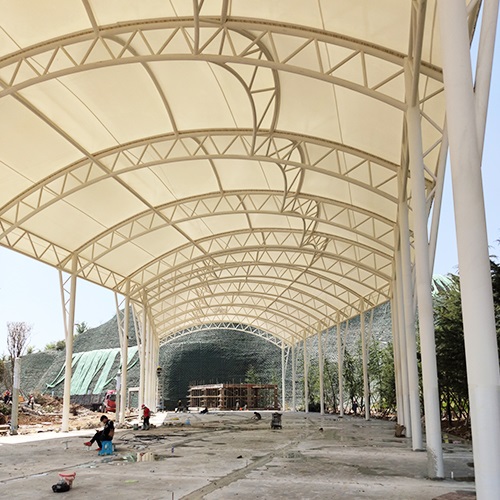

Urban Landscape Walkway Shade Membrane Structure
地点：中国贵阳
应用：张拉屋
面积：2600平方米
材料：PVDF和PTFE，1250克/平方米
范围：设计、制造和安装
Related products
-
Pvdf MembraneMembrane Structure Stadium in the Philippines: Design Drawings and Renderings
Read moreInternational School Canopy
Location:
Cebu Stadium
Application:
Stadium Basketball Court Canopy
Area:
1200 sq. m.
Materials:
Steel Structure: Hot-dip galvanized with spray coating finish
PVDF, B1, 6000N / 1250g
Scope:
Design, Fabrication, and Installation
[wpforms id="3815" title="true"]
-
-
Pvdf MembraneReasons for the wide application of membrane structures
Read moreSports membrane structures are widely used in stadiums, tennis courts, swimming pools and sports centers. With PVDF or PTFE tensile membrane and steel structure systems, they provide large span coverage, natural lighting, durability and modern architectural aesthetics.
PTFE membrane structures (polytetrafluoroethylene membranes) are very popular in large public buildings and permanent membrane structures. Their core advantages can be summarized as “durability, safety, stability, and high quality”.
PVDF membrane is basically a high-performance PVC membrane with a protective coating, offering better durability and appearance.
项目 常见范围 基布材质 Material 高强聚酯纤维（Polyester） 涂层结构 Coating structure PVC + PVDF coating 克重（Weight） 650–1100 g/m² 厚度（Thickness） 0.5–1.0 mm 抗拉强度（Tensile Strength） 2500–6000 N/5cm 撕裂强度（Tear Strength） 300–600N 透光率 Light transmittance 5%–15%（白色）white color 防火等级 Fire resistance rating B1 / M2（阻燃） 使用寿命 Service life 10–15 year 工作温度 Operating temperature -30℃ ～ +70℃ -
Pvdf MembraneNigeria International School Grandstand Sunshade PTFE Membrane structure Canopy
Read more地点：非洲尼日利亚
应用：体育场看台顶棚
面积：1300平方米
材料：聚四氟乙烯涂层玻璃纤维
范围：设计、制造和安装
