Moon Field Tourism and Vacation Zone

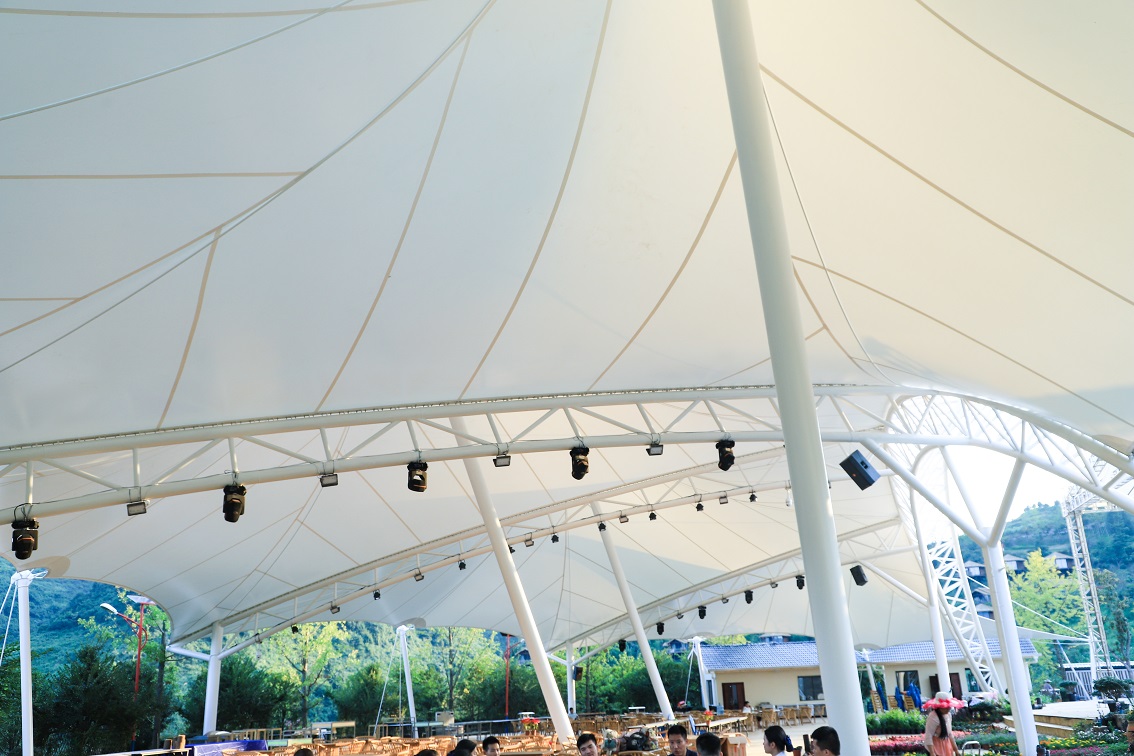

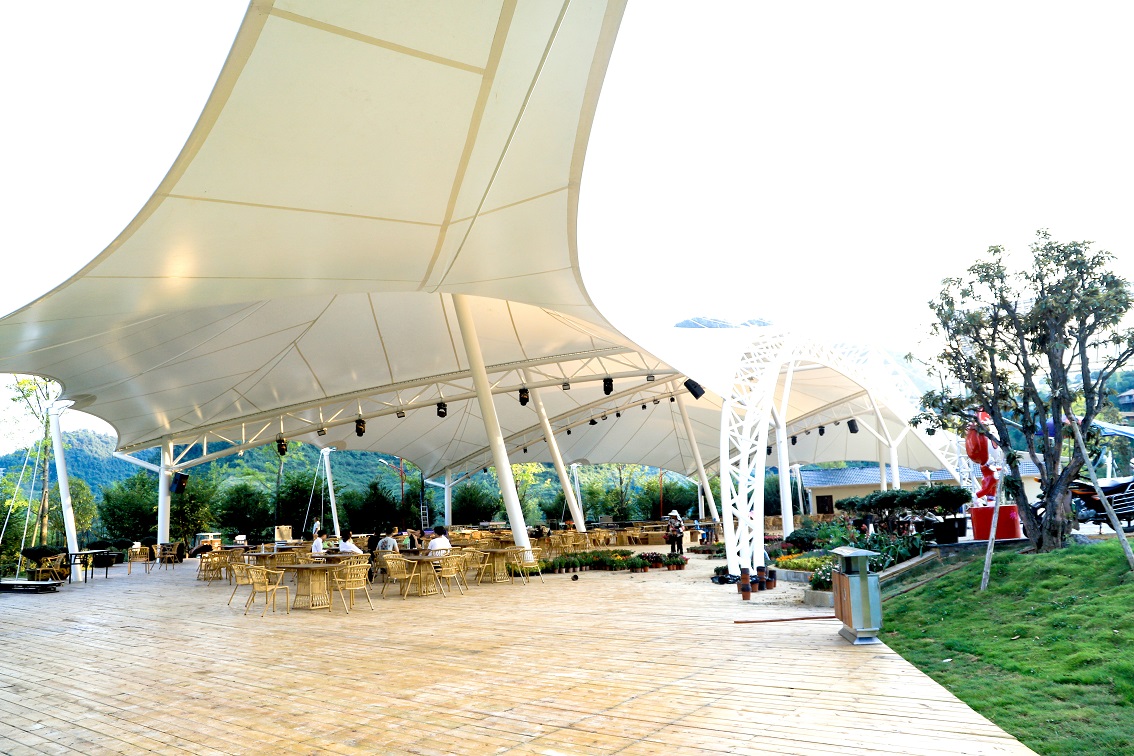

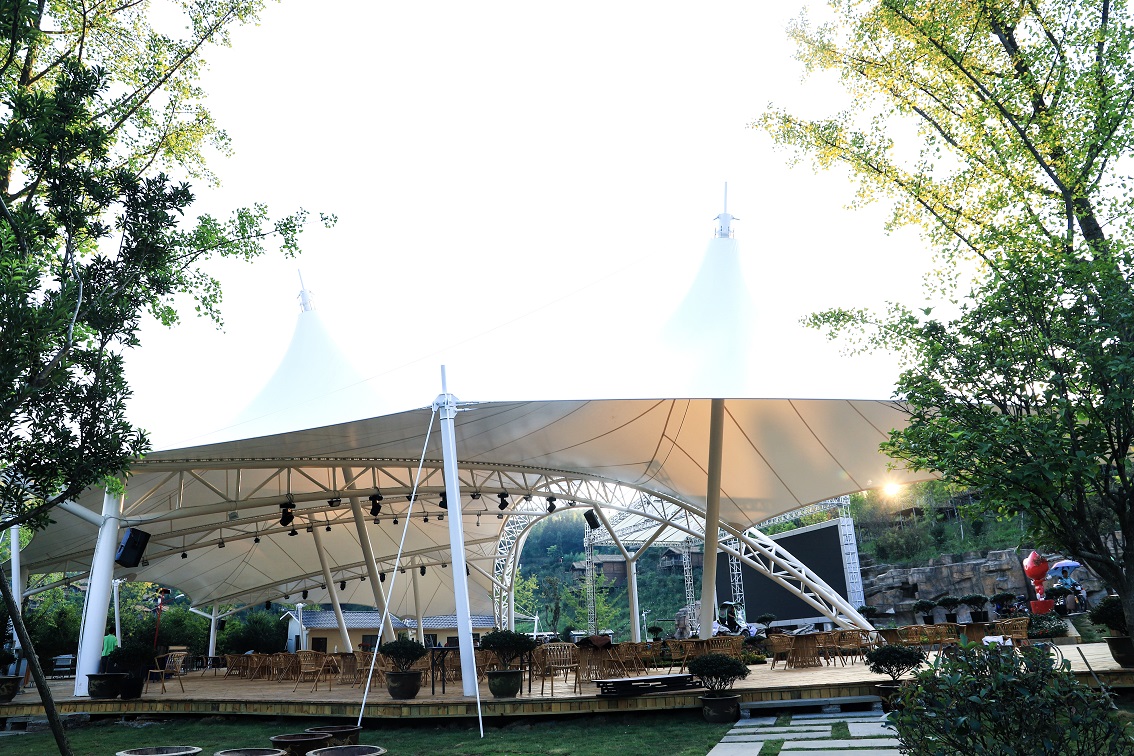

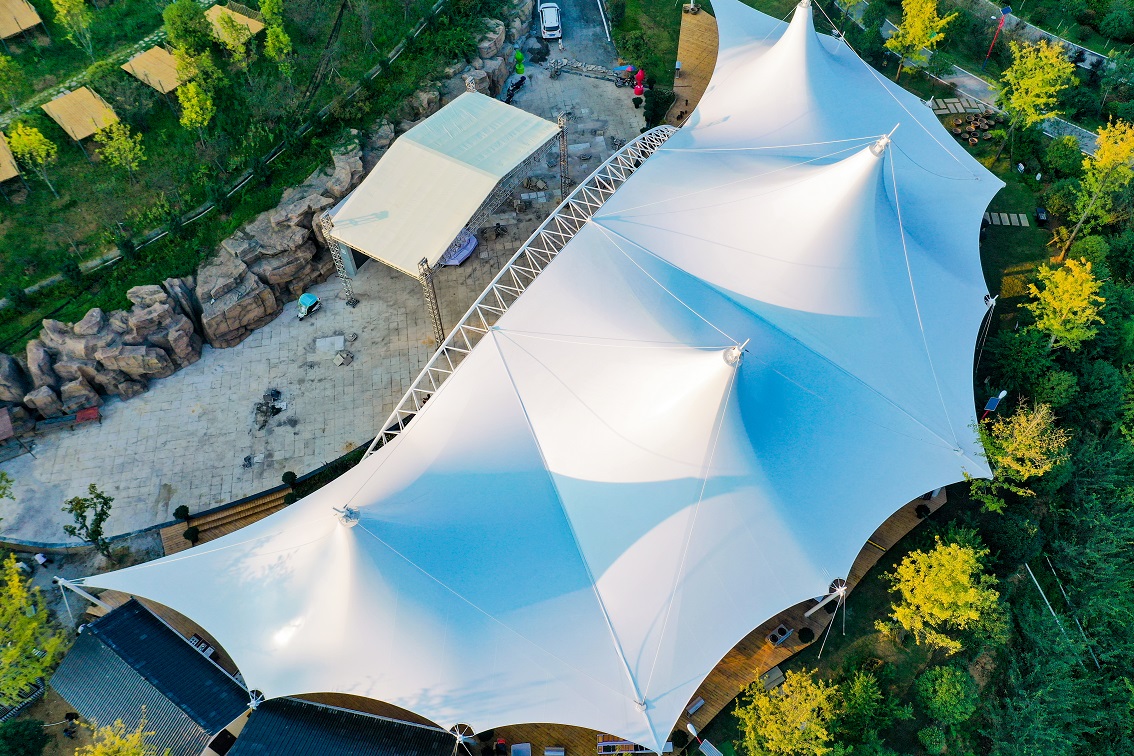

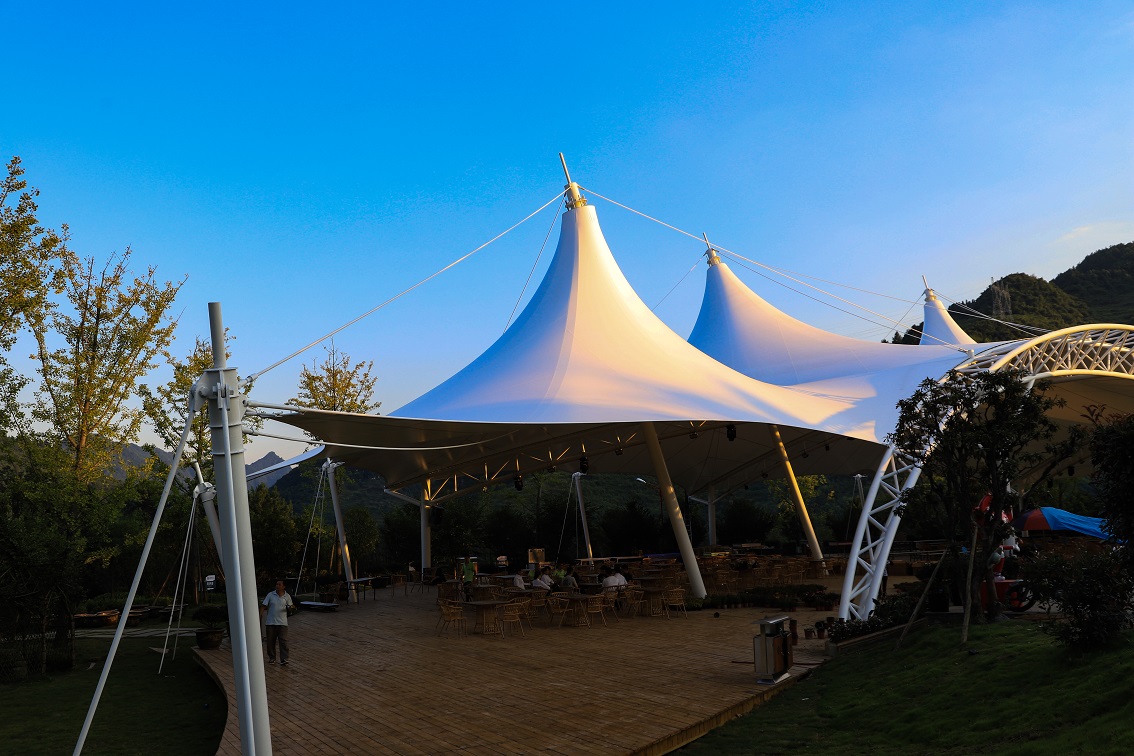

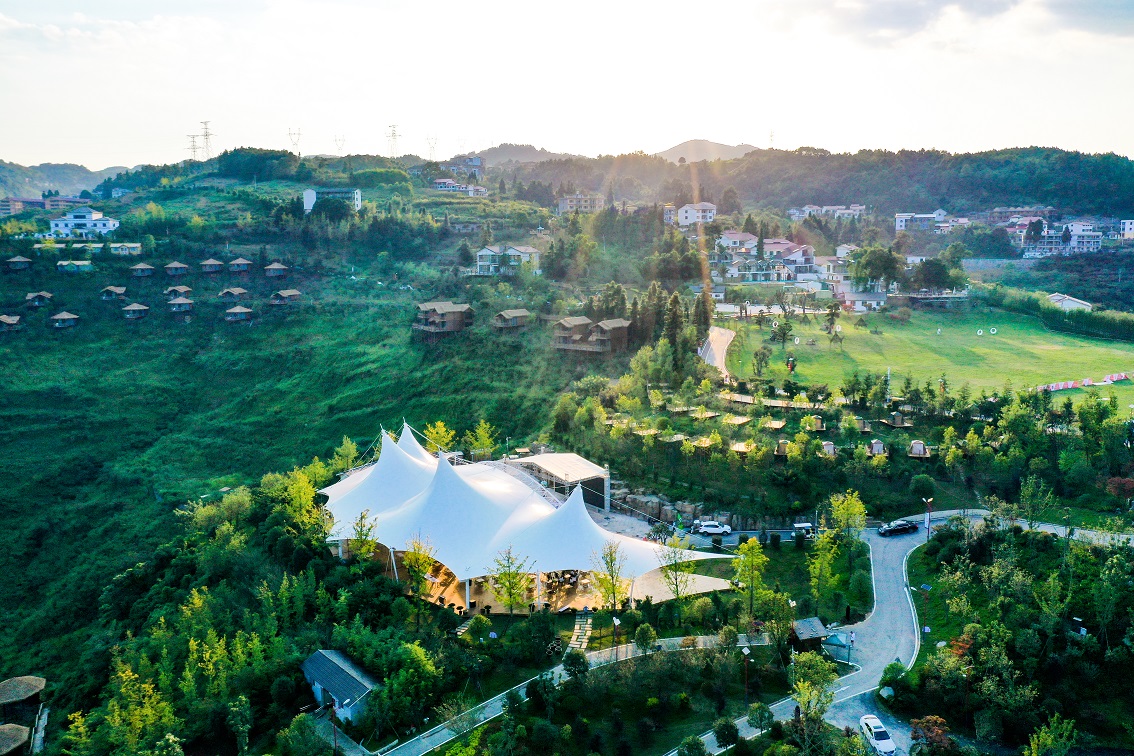

Moon Field Tourism and Vacation Zone Membrane Landscape Sunshade Structure at Kaiyuan Fangcaodi Resort, Tongzi, Guizhou
• Area: Approximately 5,791 m². It serves as a venue for the opening and closing ceremonies of major events, while functioning as a commercial leisure plaza during regular times.
• Materials: The main structure features PVDF membrane fabric supported by a steel framework—a combination that offers both durability and aesthetic appeal.
• Functional Positioning: Provides visitors with an all-weather activity space, serving multiple purposes including sun shading, rain shelter, and a scenic photo spot.
Core Advantages of Tension Membrane Structures
Advantage Dimension | Specific Manifestation
**Aesthetic Design** | The lightweight, curved form exudes a powerful sense of tension—resembling a “white cloud”—and serves as an iconic landmark within the resort area.
**Large-Span, Column-Free Space** | Its low self-weight enables extensive coverage, providing a spacious, unobstructed venue ideal for hosting events.
**Superior Weather Resistance** | The PVDF membrane material is highly resistant to UV radiation and aging, boasting a service life of 15–20 years and making it well-suited for complex outdoor environments.
**Energy Efficiency & Self-Cleaning** | The smooth surface resists dust accumulation and remains clean through natural rainwater runoff; its semi-translucent design also helps reduce energy consumption for daytime lighting.
**Safety & Stability** | Supported by a hot-dip galvanized steel structure, it is capable of withstanding strong winds, rain, and snow, ensuring safe and reliable long-term performance in outdoor settings.
This type of tensile membrane structure is highly popular in settings such as cultural tourism resorts and commercial plazas; it not only addresses the practical requirements of outdoor spaces but also serves as a trendy “Instagrammable” landmark that elevates the overall aesthetic of the venue.
